Introduction

A Battery Management System (BMS) is an advanced battery management solution designed for a wide range of industrial needs and applications, with a primary focus on safety, reliability, and operational efficiency. The system is capable of real-time monitoring of key parameters such as voltage, current, temperature, as well as battery condition indicators including State of Health (SOH) and State of Charge (SOC).

BMS Technology

Real-time & Online Management

Manage cells by providing real-time, online and accurate data in a safe and reliable manner Help eliminate manual maintenance, greatly reduce the cost

Overall Function

Monitor string voltage, charge/discharge current, float current, cell voltage, cell internal resistance, cell temperature, ambient temperature Estimate high-accuracy SOC/SOH with built-in algorithm model Alarm cell thermal runaway

Distributed Architecture

Adopt distributed system design, equipping each cell with an independent smart sensor Provide simple and easy installation, hot-swappable connection and online maintenance

AI Data Analysis

Detect low effective battery, monitor the safe operating environment, help battery selection, output analysis report clear and easy to understand via AI data analysis

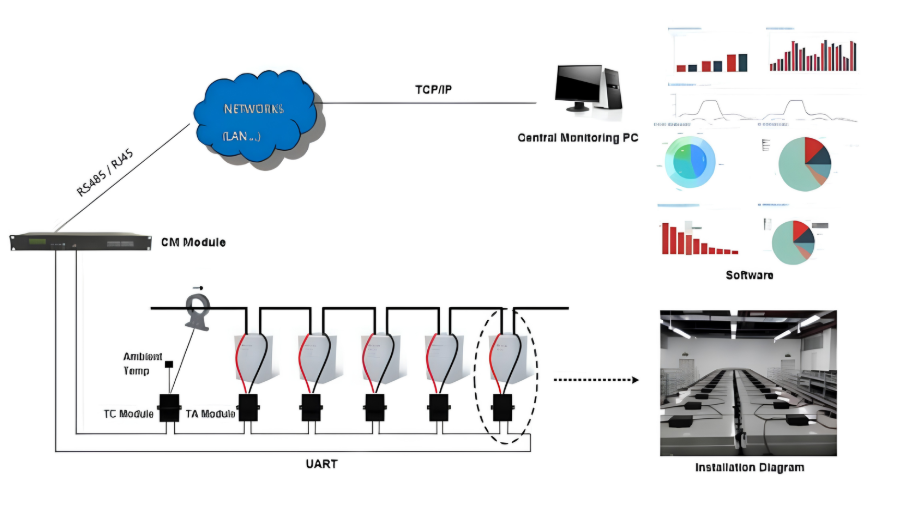

Topology

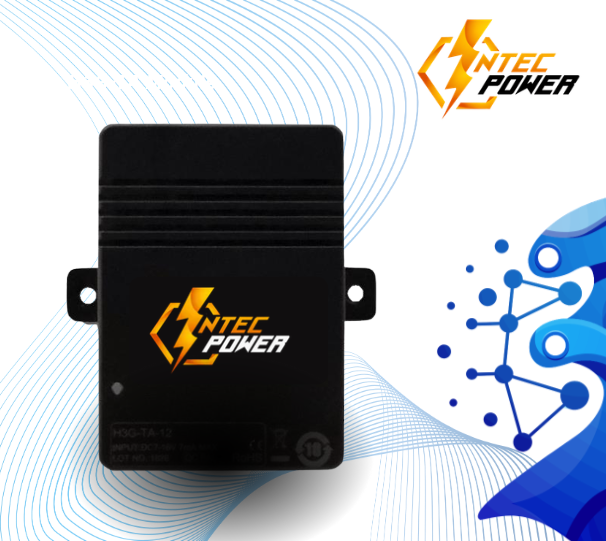

H3G-TA-1V2

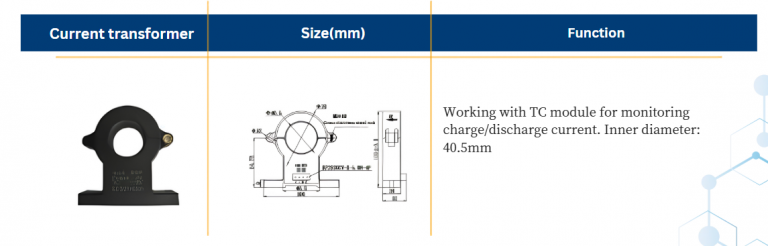

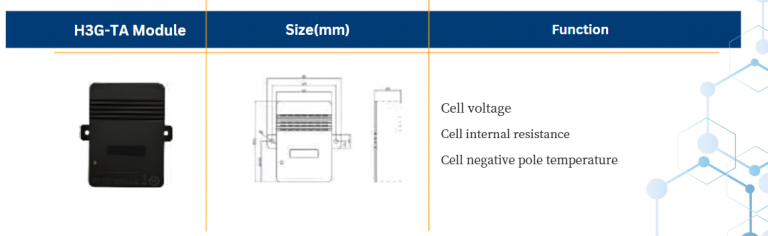

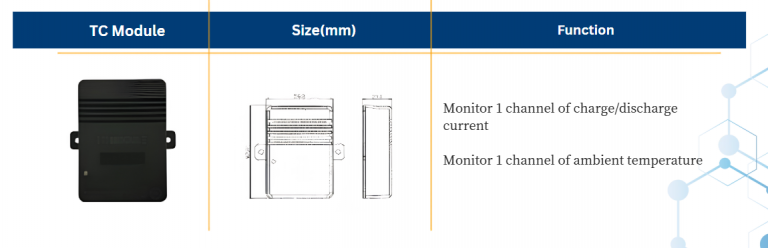

Appearance/Size/Function

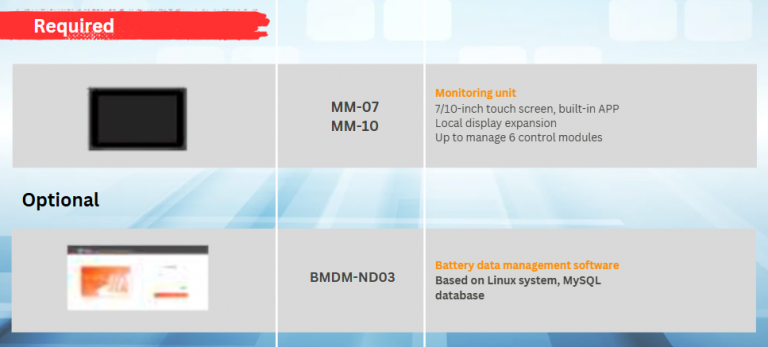

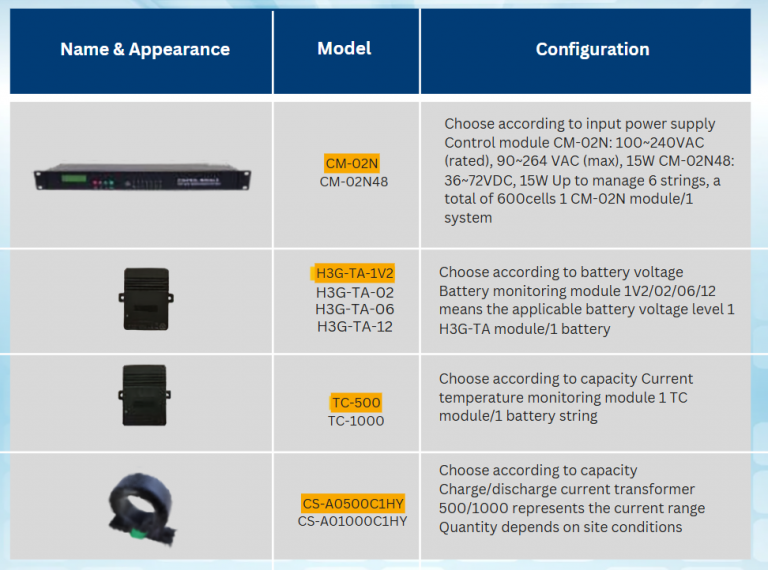

Configuration

PT. KUARTA POWERINDO PERKASA

PT. Kuarta Powerindo Perkasa is an Indonesian company which was established in 1995. The company started bussiness in electrical power supply application such as UPS, transformer and cable. KPP was appointed to be sole agent GUTOR in Indonesia at 1996.
